1. What are Gauges?

Gauges can be used to visualize real-time and/or historical data from individual channels.

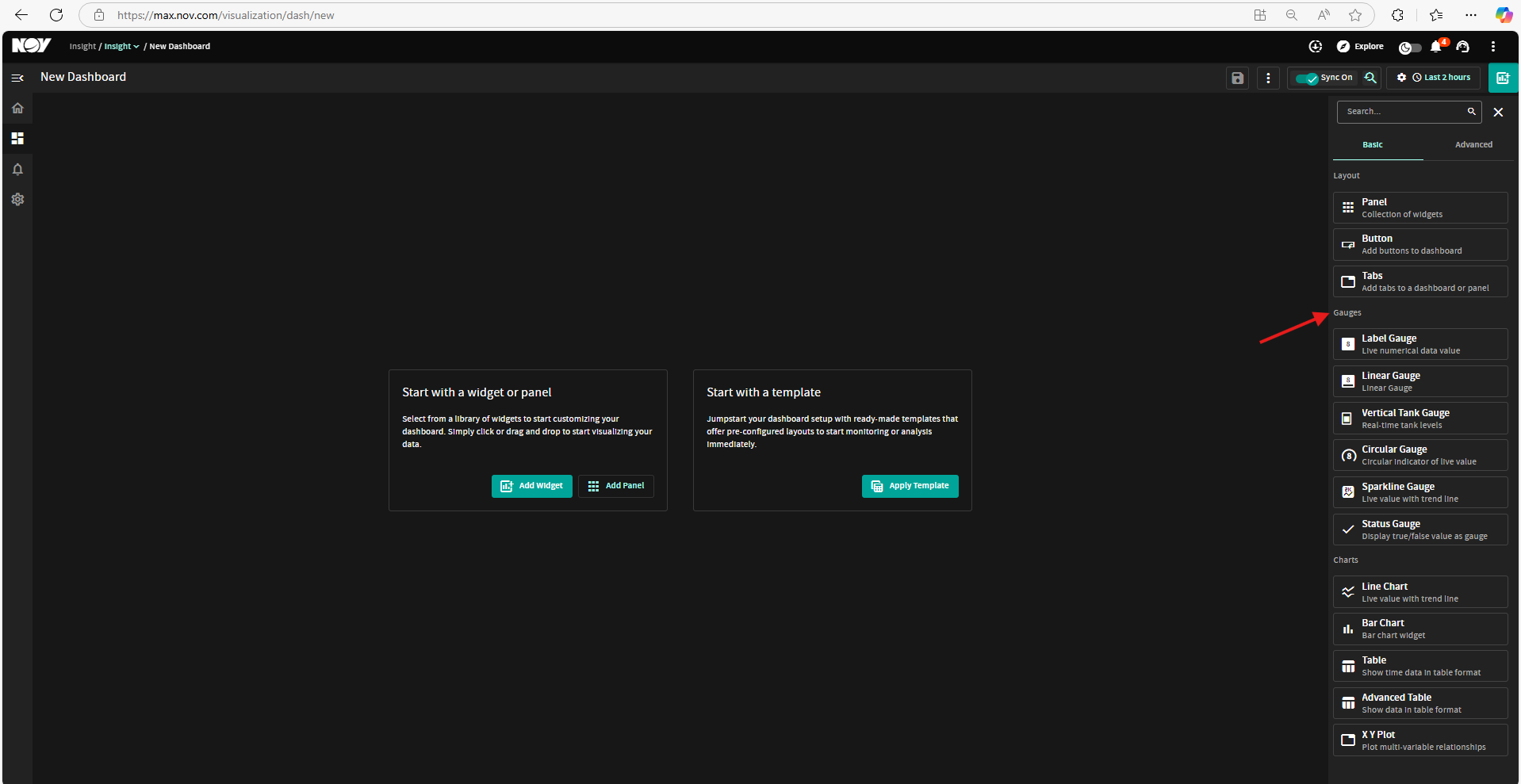

Below is the layout of gauges.

2. Types of Gauges

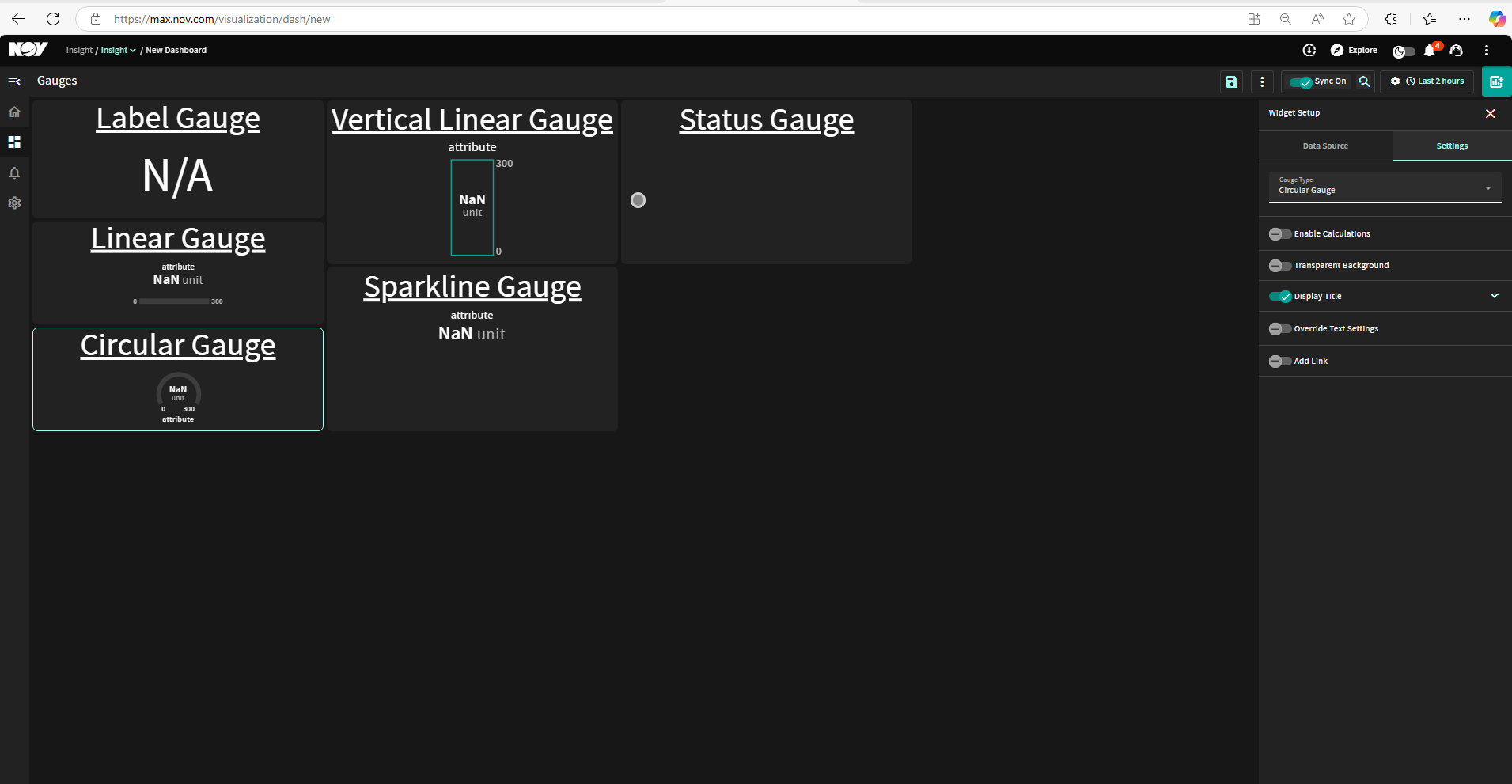

Knowing Label, Linear, Vertical, Circular Gauges, Sparkline and Status Gauges

Gauge Type	Description
Label Gauge	Displays a single raw channel value or a calculated channel value.
Linear Gauge	Displays a single raw or calculated channel value as a number with a horizontal bar showing the value between a minimum and maximum.
Vertical Linear Gauge	Displays a single raw or calculated channel value as a number with a vertical bar showing the value between a minimum and maximum.
Circular Gauge	Displays a single raw or calculated channel value as a number with a circular bar showing the value between a minimum and maximum.
Sparkline Gauge	Displays a single raw channel value over a specified period of time as a number and a horizontal line that changes over time.
Status Gauge	Displays whether a channel is active. Green = Active; Gray = Inactive.
